"A Series" Boring Bar Sets

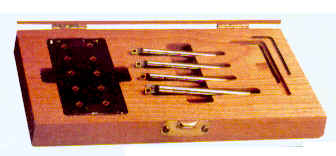

Reduced insert overhang for better rigidity and improved performance.  Features down to .180" minimum bore diameter with indexable tooling.  High positive inserts and positive axial pocket rake for superior finish.  Precision ground inserts produce tighter tolerances and excellent repeatablilty.  Furnished with 10 TiN coated (Grade CVM2) CDCD inserts and a classic wood carrying case.
Model No. Bore Bar Min. Bore Bar Dia. Lead Angle Degree Shank Dia.  Max Bore Depth O.A. Length
SA1000 .180" .165" 7 .187" .500" 2.5"
SA1005 .208" .180" 5 .187" .500" 2.5"
SA1010 .230" .187" 5 .187" ----------- 2.5"
SA1100 .290" .250" 5 .250" ----------- 3.0"
SA1405 .208" .180" 5 .375" 1.00" 2.5"
SA1420 .230" .203" 5 .375" 1.00" 2.5"
SA1440 .290" .250" 5 ..375" 1.25" 2.5"
CA1200 .180" .165" 7 .156" ----------- 6.0"
CA1215 .230" .187" 5 .187" ----------- 4.0"
CA1300 .290" .250" 5 .250" ----------- 4.0"

Item No. Material Bore Bars Included Bore Bars Included Bore Bars Included Bore Bars Included Your Price/Set
US $
24570786 Steel SA1000 SA1005 SA1010 SA1100
24570787 Steel SA1405 SA1420 SA1440 -----------
24570788 Carbide CA1200 CA1215 CA1300 -----------
