"B Series" Boring Bar Sets

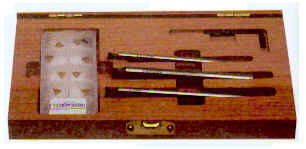

Reduced insert overhang for better rigidity and improved performance.  Features down to .180" minimum bore diameter with indexable tooling.  High positive inserts and positive axial pocket rake for superior finish.  Precision ground inserts produce tighter tolerances and excellent repeatablilty.  Furnished with 10 TiN coated (Grade CVM2) TDAB inserts and a classic wood carrying case.

Model No. Bore Bar Min. Bore Bar Dia. Lead Angle Degree Shank Dia.  Max Bore Depth O.A. Length
SB1800 .270" .187" 5 .187" ----------- 3.5"
SB2000 .300" .250" 5 .250" ----------- 4.0"
SB2100 .360" .312" 5 .312" ----------- 4.0"
SB2410 .270" .203" 5 .500" 1.00" 2.5"
SB2430 .300" .250" 5 .500" 1.25" 2.75"
SB2450 .360" .312" 5 .500" 1.50" 3.0"
CB1900 .270" .187" 5 .187" ----------- 4.0"
CB2200 .300" .250" 5 .250" ----------- 4.0"
CB2300 .360" .312" 5 .312" ----------- 4.0"

Item No. Material Bore Bars Included Bore Bars Included Bore Bars Included Bore Bars Included Your Price/Set
US $
24570824 Steel SB1800 SB2000 SB2100
24570825 Steel SB2410 SB2430 SB2450
24570826 Carbide CB1900 CB2200 CB2300
