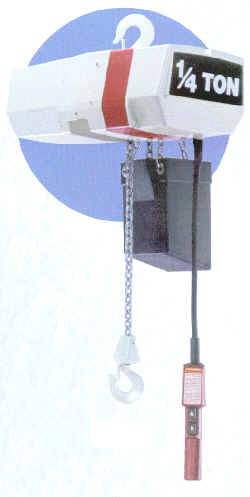

High performance hoists engineered for heavy duty industrial service.  Designed for safety, this hoist incorporates mechanical load brake, motor brake and overload clutch as standard features.  Rated loads form 1/4 to 5 Tons, with 10, 15, and 20-foot lifts.  Standard push button drop is 4-feet less than lift.  Cast Aluminum Alloy housing construction for minimum weight.  Features load bearing housings of ductile iron construction for maximum strength.  Non-load bearing housings of cast aluminum all for minimum weight.  The smaller frame models ( 1/4 - 3 Ton) are engineered and designed for use with motors up to 1 HP and the larger frame models ( 4 & 5 Ton) are designed for use with higher torque 2 and 3 HP three phase motors.  Available with top hook suspension or with motorized trolley assembly.

Note:  When ordering Specify Voltage and Hertz required;  Voltage Options= 115/230, 208 single phase or 230/460, 208, 220/380, 575 three phase.  Hertz Options= 50 or 60 Hz.  In addition, specify track type and beam size of application.
