Hoists

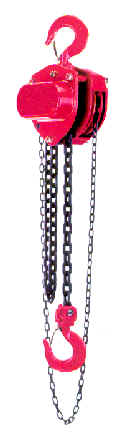

Hand Chain Hoists, 1/2 Ton thru 50 Ton Capacity

These stamped steel hand chain hoists are an excellent low cost option.  The compact, light weight design is ideal for construction and contractor applications where portability and east rigging are critical.  Rated loads from 1/2 to 20 tons with standard lifts of 10, 15 and 20 feet.  Standard hand chain drop is 2-feet less than lift.  Lubricated bearings and bushings, bearing mounted pinions and heat-treated spur gearing ensure smooth and efficient operation with minimal effort.  Mechanical load brake engages instantly for precise load holding and positioning.  360-degree swivel hooks with safety latches for positive load engagement.  Durable hardened load chain provides added strength and wear resistance for greater chain life.  Stamped steel housing withstands rugged conditions.

Item # Capacity in Tons Lift in Feet Minimum Distance Between Hooks UOM Your Price Per Each
US $
08903 1/2 10' 10-1/4" Each
08904 1/2 15' 10-1/4" Each
08905 1/2 20' 10-1/4" Each
08910 1 10' 11-13/16" Each
08911 1 15' 11-13/16" Each
08912 1 20' 11-13/16" Each
08921 1-1/2 10' 13-9/16" Each
08922 1-1/2 15' 13-9/16" Each
08923 1-1/2 20' 13-9/16" Each
08917 2 10' 15" Each
08918 2 15' 15" Each
08919 2 20' 15" Each
08925 3 10' 17-1/8" Each
08926 3 15' 17-1/8" Each
08927 3 20' 17-1/8" Each
Item # Capacity in Tons Lift in Feet Minimum Distance Between Hooks UOM Your Price Per Each
US $
08932 5 10' 22-5/8" Each
08933 5 15' 22-5/8" Each
08934 5 20' 22-5/8" Each
08936 8 10' 32-1/2" Each
08937 8 20' 32-1/2" Each
08939 10 10' 32-1/2" Each
08940 10 20' 32-1/2" Each
08942 12 10' 50-5/8" Each
08943 12 20' 50-5/8" Each
08945 15 10' 50-5/8" Each
08946 15 20' 50-5/8" Each
08951 20 10' 52-3/8" Each
08953 25 10' 52-7/8" Each
08955 30 10' 65" Each
08957 40 10' 73-5/16" Each
08959 50 10' 77-5/8" Each
