Boom Lift
Personnel Lift and Boom Crane

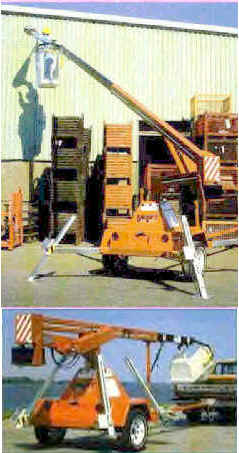

This lift is designed to be both a highly-productive personnel lift and a boom crane in one unit without sacrificing performance in either area.  The unit can lift up to 500 pounds to a 24-foot height, or up to 300 pounds to a 31-foot height.  Working height as a personnel lift is 36-feet max. and when used as a crane 31-feet max.  One person can quickly convert the lift from a personnel lift into a boom crane.  Unlock the single safety pin, remove the bucket and attach a cable. It's that easy.  The lift features a fiberglass bucket that is gravity leveled hydraulically dampened and is secured by a positive lock pin.  All hydraulic components and service areas are easily accessible...even in the field.  Additional features are as follows: Trailer frame with 3000 lbs. (1362 kg) single axle, P205-75R14 Radial Tires, 2" (50.8 mm) ball coupler, 6-volt, 250 amp/hr, deep cycle batteries, Built-in 30-amp charger with automatic shut-off, Fiberglass bucket (gravity leveled, hydraulically dampened) with body harness and lanyard, Effective 360º Coverage, Emergency controls at bucket and base, Removable bucket for crane conversion.  Approximate shipping weight = 3000 lbs.



Item # Working Height in feet Outrigger Spread Normal Operating Pressure Tongue Weight Rotation Coverage Your Price Per Each
US $
538 up to 36' 11'1" 700 PSI 140 lbs 360º
