Aluminum Foot Valves
Vertical or Horizontal Aluminum Foot Valves for OD Tubing, Companion Flange or Female Thread Applications

Combining an attachment coupling, a foot valve and a strainer, these aluminum foot valves fulfill every requirement.  Made entirely of aluminum except for the bolts, rubber gaskets and valve flapper, these valves are light in weight yet sturdy and efficient.  Ample space is provided for the valve flapper to get out of the water stream and the full size opening means minimum friction loss.  Choose from 3 different mounting types to accommodate for all applications.

Note: The hump on the body must face up when it is used in a horizontal or near horizontal position.

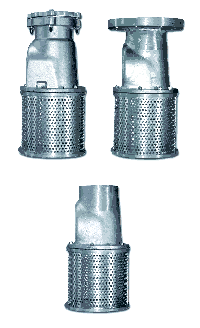

Tubing Applications (top left picture)--Especially suitable where the aluminum tubing used for suction is to be in a vertical position, however, it will also work where the tubing is at an angle or in the horizontal position.
Item # Size Ratio Of Open Area UOM Your Price Per Each
US $
SFVV3 3" 5.0 Each
SFVV4 4" 5.0 Each
SFVV5 5" 4.3 Each
SFVV6 6" 3.8 Each
SFVV8 8" 4.0 Each
SFVV10 10" 4.5 Each
Companion Flange Applications (top right picture)--This foot valve matches the bolt pattern of a standard 125 pound cast iron companion flange or a schedule 80 PVC flange.
Item # Size Ratio Of Open Area UOM Your Price Per Each
US $
SFV2CF 2" 5.0 Each
SFV3CF 3" 5.0 Each
SFV4CF 4" 5.0 Each
SFV5CF 5" 4.3 Each
SFV6CF 6" 3.8 Each
SFV8CF 8" 4.0 Each
SFV10CF 10" 4.5 Each
SFVV12 12" 6.5 Each
Female Thread Applications (bottom picture)--This foot valve attaches to an NPT thread end.  Used for hose, steel pipe, or PVC applications
Item # Size Ratio Of Open Area UOM Your Price Per Each
US $
SFVV2FP 2" 5.0 Each
SFVV3FP 3" 5.0 Each
SFVV4FP 4" 5.0 Each
SFVV5FP 5" 4.3 Each
SFVV6FP 6" 3.8 Each
SFVV8FP 8" 4.0 Each
SFVV10FP 10" 4.5 Each
